Vane Type Drum Stirrer TI-V200

Vane Type Drum Stirrer TI-V200
Vane Type Drum Stirrer TI-V200
Send Inquiry
Product Code : 06
Product Description

VANE TYPE DRUM STIRRER TI-V200



Pneumatic Agitator for Drum capacity 200 Liter with Lid opening
of size 90 mm.

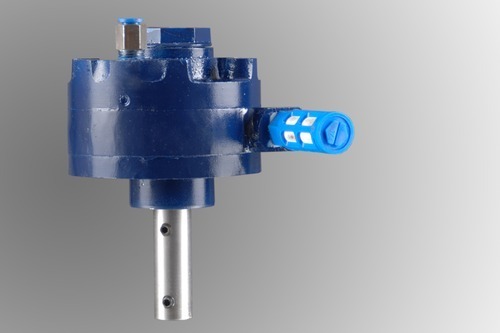

Vanes connected to the Shaft of Heavy Duty Air Motor moves in
perpendicularaxis during rotation. It can be easily inserted through
Lid of Drum.It has Two coaxial Vanes.



TECHNICAL SPECIFICATION :



MODEL : TI- 20018

POWER : 1/8HP

Air Pressure : 0.64Mpa

Free Speed : 2500 rpm

Torque : 0.64N.m

Air Cons. : 180L/min

Paint Barrel : 200L

Axes Size : 15 x 960 mm

Vane Size : 10" x2

Net Weight : 6.5kgs
